​Custom Two Channel Mastering Console

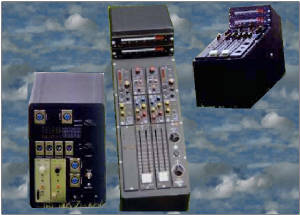

​Two channel mastering console with x/y or M/S set-up options.  Built out of historic TAB/Telefunken and Neumann modules, supported with TAB-Funkenwerk parts, this unit was built for tracking or mastering in use with digital recording tools.

​The Set-up:

  • ​Switchable X/Y or M/S decoder with ELA 130 Direction fader (moves stereo images 360 degrees) and 0 to 180 degree center focus fader
  • ​V376b (476b) mic pre-amps, 0 to 80 dB with 40/80/120 Hz cutoff (-12dB) or 20 to 40kHz
  • ​U376b (476b) compressors/limiter with de-esser and low level expander
  • ​W391b (U491b) three band EQ , +/- 15 db cut/boost, center frequency and Q
  • ​W390s (290s) stereo fader for M/S and X/Y signal
  • ​Z340 differential transformer (MS/encoder)
  • ​J345 light meters, with 20 ms attack, -50 to +5dB
  • ​U370b light meter driver set @ 0dB (0.775V)
  • ​N350 powersup. +24V/2A, +48V/100mA, +12V/3A
  • ​S/N : -95dB@60dB setting unweighted
  • ​Every module can be bypassed or used through the built-in Switchcraft TT patchbay.
